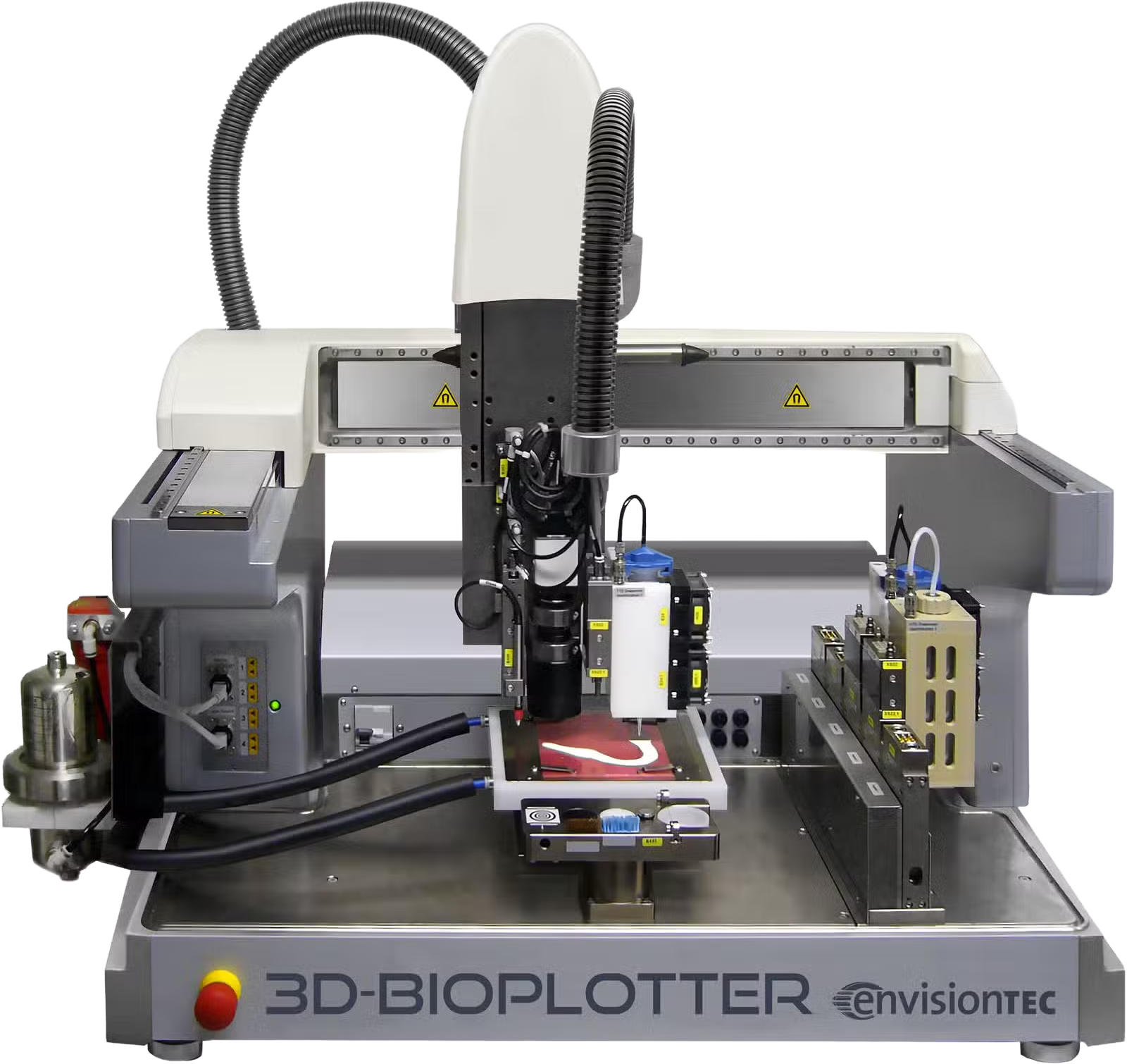

EnvisionTEC 3D-Bioplotter Manufacturer Series

The 3D-Bioplotter System is a versatile rapid prototyping tool for processing a great variety of biomaterials for computer-aided tissue engineering (CATE), from 3D CAD models and patient CT data to the physical 3D scaffold with a designed and defined outer form and an open inner structure.

  • Built-in camera to enhance needle calibration and to ensure consistent prints
  • Temperature controlled build platform and sensor ports. This allows greater material variety and finely tuned environments for low tolerance scaffolding.
  • Five cartridges slots for more materials in a single print.
  • Filters Included: Sterile and Particle
  • Platform Temperature Control: Yes (Chiller Included): -10°– 80°C
  • Build size: 150 x 150 x 150 mm
  • Speed: 0.1 – 150 mm/s

Standard Operating Procedure

  • Filters Included: Sterile and Particle
  • Platform Temperature Control: Yes (Chiller Included): -10° – 80°C (15° – 176° F)
  • Max Heads: 5
  • Head Temperature Range: Low: 0° – 70°C (32° – 158°F) or High: 30° – 250°C (86° – 482°F)
  • No. of Heads Included: 2
  • Tool Changer Type: Modular Tool Changer
  • Cartridge Sizes: 10 – 30 ml (.3 – 1.0 fl oz)
  • Other Usable Modules: All
  • Platform Height Control: Automatic
  • Needle Calibration: Camera
  • Material Calibration: Semi-automatic
  • External Temp. Ports: 4
  • Build Volume (XYZ): 150 x 150 x 150 mm (5.91 x 5.91 x 5.51 in.)
  • Speed: 0.1 – 150 mm/s (0.004 – 5.91 in/s)
  • Minimum Strand Diameter: 0.100 mm (0.004 in.) Material Dependent
  • Axis Resolution (XYZ): 0.001 mm (0.00004 in.)
